Now onto laminating all the frames up - these are principally longitudinal frames on each chine to provide glue area to attach the ply. Each made up from three tim
bers measuring either 5”x3/4” or 3”x3/4” laminated together around the moulds to make up the main shape of the boat. Lots of clamps and balcot
an polyurethane glue were used. These timbers at there longest were 37’ so most had two scarfs to make up the lengths.
The five inch timbers needed to be steam bent around the stern as they had a compound style curve to them. All had a staggered style lap joint into the stem and stern post which had also been laminated and fixed to the moulds.
Interestingly while steaming some 16’ sections to get the aft bend around the sheer, inevitably some of the scarf joints got steamed too. They did not move or even lift at the feather edge - good old Balcotan.
All the joints were epoxy-glued and fixed with silicon bronze fastenings. Where required bolted together with stainless steel bar.

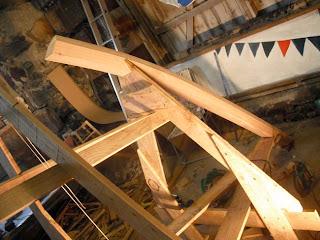

Above is the stem in place - Laminated around a mold. It has not yet had the stringers jointed into the ends. On the right is a detail of the
staggered style lap joint used!
